Technical Article Available from Solar Atmospheres, Inc.
A recent paper has been written with illustrations describing eutectic and sticking in high temperature vacuum furnaces with critical parts, see the complete article.
Introduction
The purpose of this paper is to explain reactions that can occur during a vacuum processing cycle and different methods of preventing these reactions. We will discuss how eutectic compositions can form while heat treating and how diffusion bonding can be a concern to heat treaters when two dissimilar materials are in close contact with each other in high vacuum at elevated temperatures.
To many people, the term “eutectic” is not well understood. The best way to think of a eutectic is a metallurgical meltdown. A eutectic reaction occurs when two components with different melting points and surfaces free of oxides come in contact with each other in the vacuum furnace. This can create an atomic diffusion. For some materials, when a specific atomic composition is reached, they will melt at a temperature much lower than the melting point of the individual metals. If that temperature is reached or exceeded during the heat treating cycle, melting will occur at the contact points. This is referred to as a eutectic melt.
The most common example of a eutectic reaction is with a tin/lead solder. Tin melts at about 450°F, while lead melts at about 620°F. When they are together as two components, the solder melts at 370°F. That is 80 degrees below where tin melts at and 250 degrees below where lead melts.
Another good example in vacuum heat treating is the titanium/nickel eutectic. In this scenario, titanium melts a little above 3000°F, whereas nickel melts at about 2650°F. If you heat treat them in a vacuum furnace, placing the titanium on a typical heat treat fixture such as a grid or stainless steel basket, the two materials would melt at around 1730°F. This could be a disaster if the technician does not understand the eutectic reaction.
We learned a good lesson on eutectic melting a couple years ago when a clean-up run was performed in one of our furnaces at 2400°F without prior removal of a work grid. The high nickel alloy cast fabricated grid was sitting on molybdenum support rods positioned on the furnace graphite support rails.
Figure 1: Eutectic meltdown between the high nickel alloy cast fabrication grid and the molybdenum load rods. This was an expensive mistake, in excess of $150,000.
A form of a eutectic is diffusion bonding, a reaction that occurs well below the eutectic melting point and must be considered when two or more materials are in direct contact.
Diffusion bonding becomes more acute as the mass of the parts in contact increases. In vacuum brazing, a eutectic reaction can be a desirable formation when joining two pieces of metal using brazing filler metals. However, there are times when a eutectic reaction can occur with unintended and often damaging consequences.
Table 1 shows some alloy mating combinations and the eutectic melting points.
Eutectic Barriers
A eutectic barrier is the insertion of a material between the two mating metal surfaces that might be heading for a eutectic melt at elevated temperatures. This barrier material must be capable of withstanding the process’ maximum temperature to be effective.
The most effective barriers are:
- Refrasil cloth or Kaowool blanket
- Thin Ceramic plates
- Ceramic fixtures of different shapes
- Stop–off paints of different types
Refrasil is a clothlike material consisting of more than 96% silica (SiO2) that resists oxidation and most reactive melting. Most Refrasil textiles will not melt or vaporize until temperatures exceed 2650°F.
Kaowool is a good insulation and barrier when used in a blanket form.
Ceramic, high purity alumna can take the form of flat plates or individually designed fixtures to fit a particular application.
Stop-offs are designed to protect metal surfaces from the flow of molten brazing filler metal, or to prevent metal surfaces from adhering or sticking to each other.
The following are illustrations of how barriers are used in actual applications.
1. Kaowool Barrier: Typical load of Titanium logs on Kaowool with graphite fixturing. Processing temperature is 2350°F for 24 hours in high vacuum.
2. Refrasil Cloth Barrier: Separates the bars from the supporting graphite plate. This eliminates the possibility of a eutectic reaction when hardening the bars at 2125°F.
3. Ceramic Plate: Demonstrates the use of a thin ceramic plate to separate the fastening nuts from the graphite support plate. This process is for a sintering procedure to 2500°F.
4. Ceramic Plate: Typical load of nickel iron alloy, MuMetal, fixtured on Alumina sheet with graphite support. Processing temperature is 2150°F.
5. Ceramic Fixture: Using a special ceramic fixture to support the all-thread parts of high speed steel for a hardening cycle at 2100°F. The ribbed ceramic fixture separates the parts from the graphite support plate.
6. Stop-Off Barrier: Typical load of 420 stainless steel molds processed on graphite plate utilizing Wall Colmonoy Inc. white stop–off. Processing temperature is 1900°F.
7. Green Stop–Offs: Typical load of orthopedic implants fixtured with alloy 330 screens utilizing Wall Colmonoy stop–off fixtured in CFC grids. Processing temperature is 2175°F.
8. Other Barrier: Graphite plate supporting the load separated by a high temperature aluminum barrier developed by GMI. This barrier would be similar to using the green stop-off material. This particular hardening process has an upper temperature of 2200°F.
These are just a few examples of how barriers are used to eliminate the possibility of eutectic, or sticking, reactions from forming.
We hope this document illustrates to the vacuum processing personnel how various forms of eutectic melting or sticking can be eliminated and how various types of barriers can be incorporated into a thermal treating process.
For additional information, contact Roger Jones at [email protected], and visit our website at solaratm.com.
Written by: Real J. Fradette, Senior Technical Consultant, Solar Atmospheres, Inc.
Roger A. Jones, FASM, CEO Emeritus, Solar Atmospheres, Inc.
References:
- Critical Melting Points and Reference Data for Vacuum Heat Treating Sept 2010, Solar Atmospheres, Inc.
- Graphite Machine Inc., Topton, PA
Did you like this article? Click here to subscribe to The Monty.
View our recent magazines and podcasts by clicking the following link. https://themonty.com/magazine/
The directory will be accessible both online and through its mobile app. Original equipment manufacturers (OEMs), those in the aftermarket, and product and service providers will benefit from the convenient and easy-to-use Q&A platform. “The road to a vibrant community is based on a balance of both valuable connections and relevant content. Targeting community knowledge is extremely effective to product and service suppliers, and our platform is capable of tapping into that,” continues Charky. “Our Credo challenges us to maintain a laser-targeted focus on resolving end-user issues and empower our members to form reputable profiles as trusted contributors in their respective fields. What’s more, we provide a cutting-edge opportunity to reinvigorate this industry and close the gap with the incoming generation of vacuum heat treaters.”
ABOUT VACUUMFURNACES.COM: VacuumFurnaces.com is where subject matter experts share their know-how and expertise with vacuum furnace end-users in operations, production, training, maintenance, service, support, engineering, and R&D. The platform provides a space for industry professionals to connect over symbiotic knowledge and establish valuable relationships around niche topics with a highly targeted and captive audience. Alan Charky, Founder, VacuumFurnances.com (416) 806-6862. [email protected]”
Did you like this article? Click here to subscribe to The Monty.
View our recent magazines and podcasts by clicking the following link. https://themonty.com/magazine/
The big news for last week was the announcement that Can Eng Furnaces International, one of the largest furnace builders in North America has new ownership (the press release can be found at New Ownership for Furnace Builder Can-Eng Furnaces International Limited | The Monty). Can Eng was founded in 1964 in Niagara Falls, Ontario Canada and has serviced the worldwide heat treating market ever since. While the company is good at many things when we think of them we think mesh belt furnace lines and we are pleased to say that we watched the company introduce the technology into North America.
Going back to the late 1970’s, early 1980’s Can Eng brought mesh belt furnaces into North America through an agreement with a Japanese company that had developed the process. Wally Bamford (owner at the time), Pete Mackenzie, Director of Engineering and John Kay, Sales Manager were absolutely convinced that mesh belt furnaces had tremendous advantages over what was common at the time, cast link belt lines. As we know they were proven correct and today cast link belts have been relegated to a very small part of the market, mainly for large heavy parts only. At the time of introduction a large mesh belt line was 500-1,000 pounds per hour, now it is not uncommon to see lines capable of 6,000 pounds per hour. There is no question that Can Eng has provided more mesh belt lines in North America than any other furnace manufacturer in the world. Having said that though we have visited furnace builders in China who produce one mesh furnace each and every week of the year the vast bulk of which are for the fastener market.

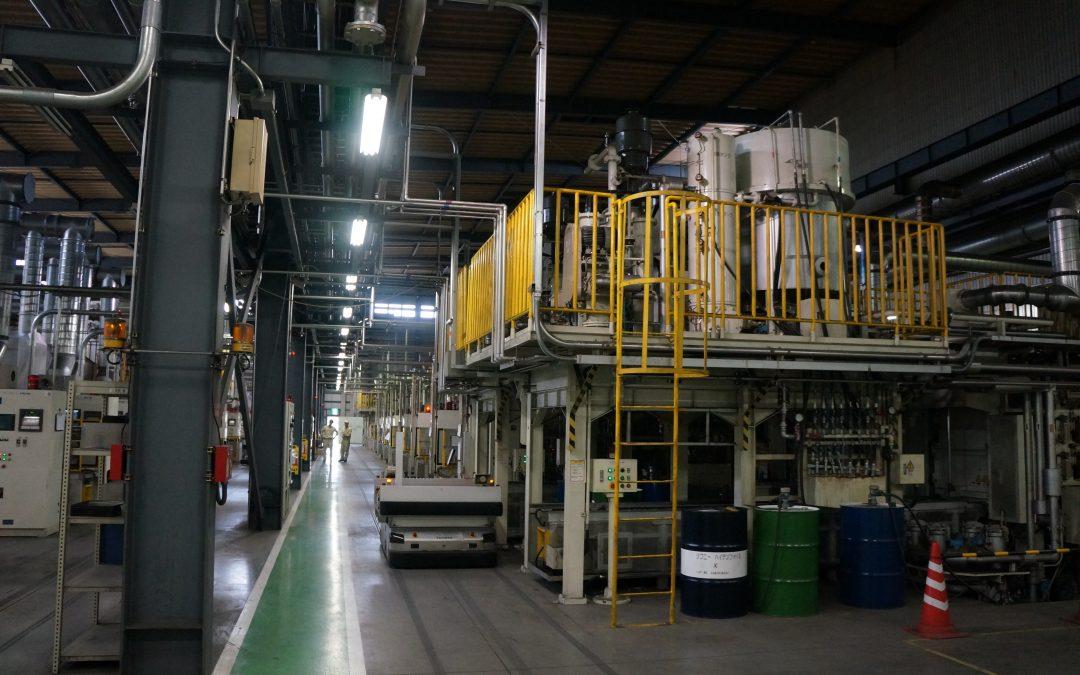

We have a couple of examples of installed mesh belt lines, including a small line in Mexico (above) and a large 6,000 pound per hour line at Metex Heat Treat in Canada below (Metex will be featured on “The Heat Treat Podcast” within the next few weeks). Incidentally we don’t believe any substantial changes are planned for Can Eng although only time will tell.
